Side Slide
Garage Doors
Side SLide Garage Doors

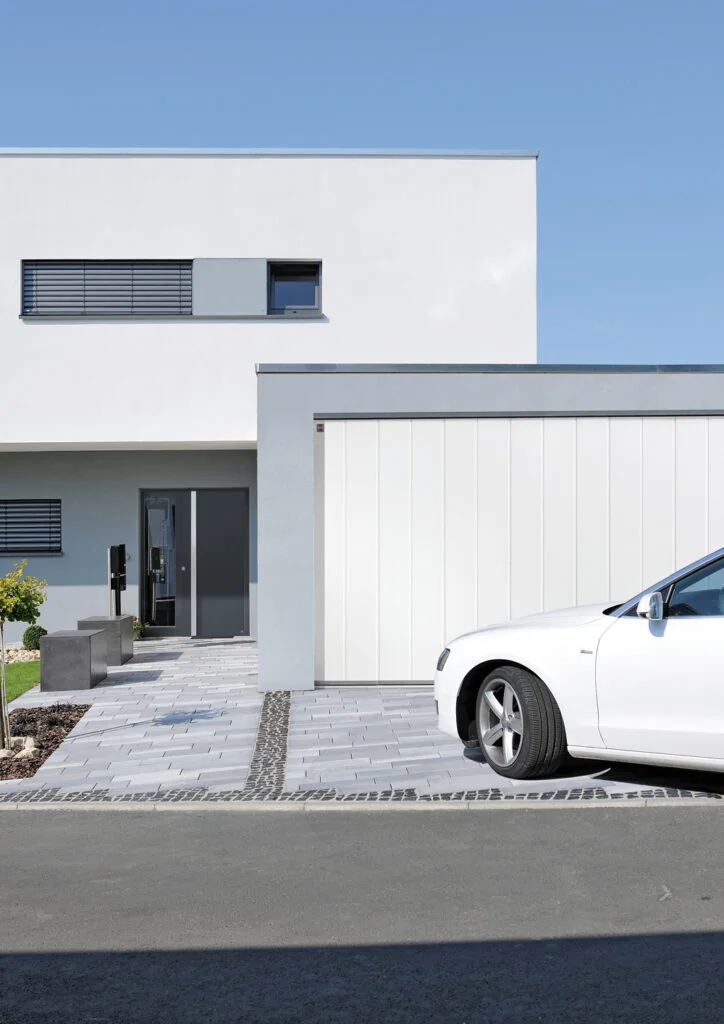

If you have a storage area in the roof of your garage or there are pipes, lintels or a sloping roof in the way, then a sliding section garage door is ideal for these conditions. This type of garage door opens using a sideways action instead of upwards.
The sliding garage door panels are 42mm thick and filled with PU-foam. This provides insulation thermally and acoustically and additionally provides good leaf stability and a smooth running action.
Side SLiiding Garage Door Demonstration
Why should you buy A Side Slide garage door?

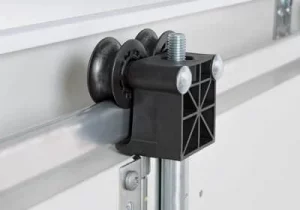

Twin Rollers –
42-mm-thick panels with PU foam infill are guided safely and precisely at the top by stable twin rollers and at the bottom in a rounded floor rail. The floor rail is easy to clean, as it is open on both ends.
Finger trap protection inside and outside
Optimally shaped door section transitions and hinges prevent fingers from being accidentally trapped.

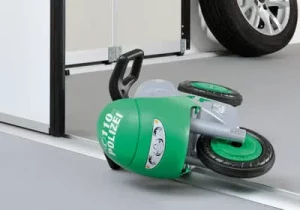

Double automatic safety cut-out
The reliable automatic safety cut-out is active during both the opening and the closing cycle of the door. The door stops immediately if there is an obstacle in the opening zone or in the wall guide.
This prevents injuries and damage to vehicles or property.
Get into your garage faster
Side sliding sectional doors can also be opened partially to allow pedestrians to pass. This lets you get into your garage faster, without the need for the whole door to be open.
More convenient with automatic partial opening
The passage width can be individually set in doors with an operator.

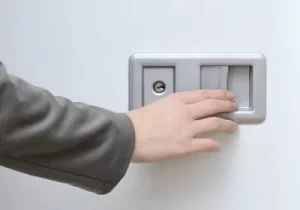

The door is operated via the hand transmitter or the optional door handle with radio module.
- Standard floor rail

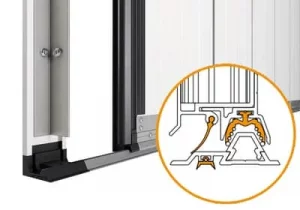

- Continuous bottom seal
- Barrier-free entrance
- Water tightness class 2
- Air permeability class 2
The bidirectional radio system BiSecur features future-oriented technology for the convenient and secure operation of garage and entrance gate operators, door operators, lights and more.
This extremely secure BiSecur encryption protocol, developed by Hörmann, with a stable, interference-free range makes sure that no one can copy your radio signal. It was tested and certified by security experts at Bochum university and independent test institutes.
You will never have to go outdoors in all types of weather to check whether your garage door is closed. With a single push of a button, the LED colour on the hand transmitter HS 5 BS shows you whether the door is open or closed. If required, another push of a button* closes the door.
award WINNING DESIGN
In addition to a black or white design, BiSecur hand transmitters are characterised by an elegant shape that fits easily in the palm of your hand.
Hörmann’s BiSecur hand transmitters with an optional high-gloss surface in a piano lacquer look have received the reddot design award for their exclusive design.
